Numeric Score

Properties​

Label Text​

Text for the score.

Score​

Numeric value of the control.

Prefix​

Prefix to appear in front of the score.

Suffix​

Suffix to appear in at the end of the score.

Min​

Number. Set's the numeric minimum of the gauge.

Max​

Number. Set's the numeric maximum of the gauge.

Decimal Points​

Number of decimal points to show for the score : 0, 1, 2.

Value Format​

Format of the value:

  • Auto (default)
  • 1
  • K
  • M
  • B

Font Size​

Font size options for the value, prefix, suffix, placeholder.

  • Small
  • Medium(default)
  • Large

Circle Size​

Size options for the arc.

  • Small
  • Medium(default)
  • Large

Display​

Display options for the arc and the placeholder.

  • Column (default)
  • Inline

Alignment​

Alignment of the values

  • Start
  • Center (default)
  • End

Color Display​

Color Display Types:

  • Default Color (default) shows the default theme color on the arc regardless of the value.
  • Color Scale shows the color based on the value in a color scale.
  • Color Segments shows the color of the arc based on what the value is in a specific segment.
  • Color Scale Segments shows the color of the arc based on what the value is in a specific segment scale.

Color Segments​

An array of up to 5 segment thresholds and color. The segment is an array that holds a numeric value as the first value, and a string color as the second value.

The default value is an example of the red/yellow/green BCG colors spread evenly across a range of 0 to 100:

[
  [100, "#29BA74"],
  [66, "#D4DF33"],
  [33, "#E71C57"]
]

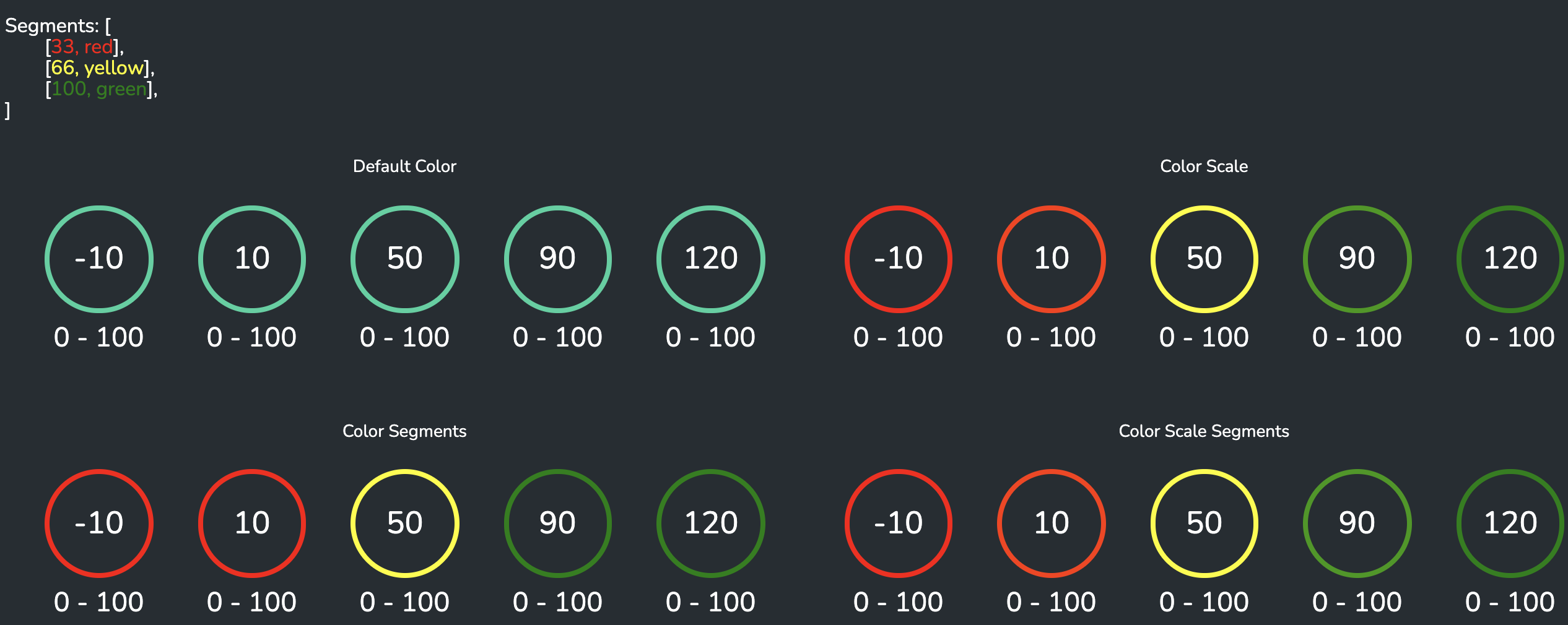

Segments with equal weights

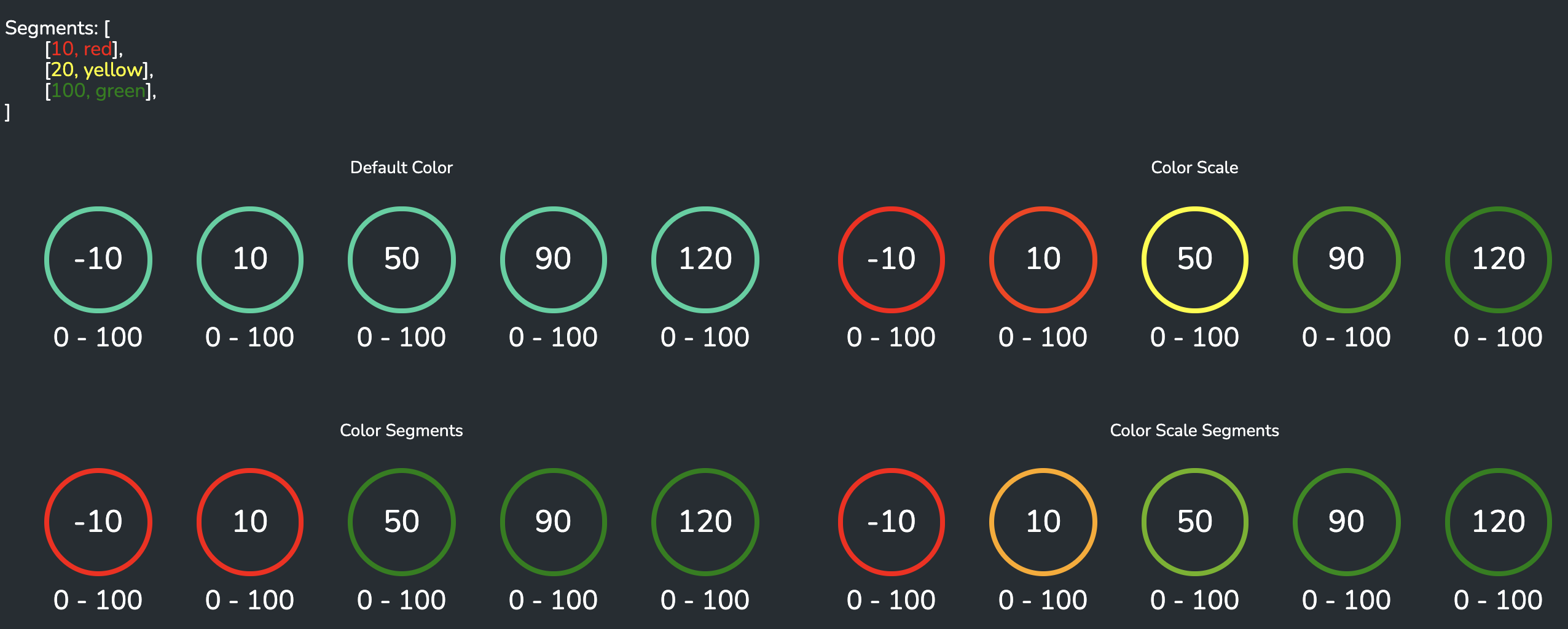

Segments with different weights
